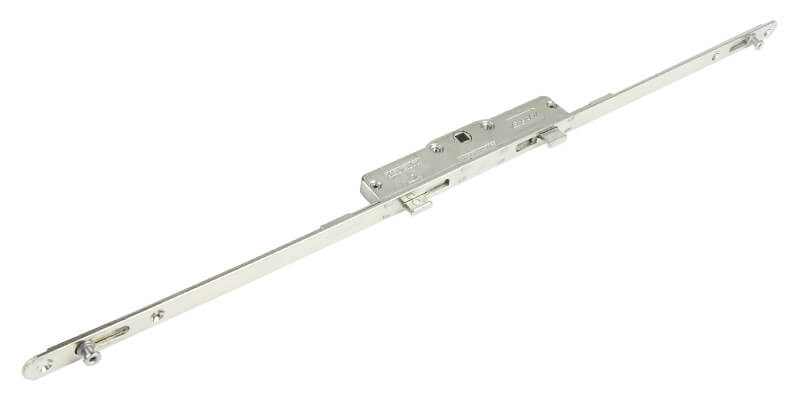

Easi-Fit provides very high levels of security by way of the patented claw locking mechanism.
No cropping required, six bar sizes cover sash rebates from 200mm up to 1200mm. The faceplate has rounded ends to help avoid damage to the profile surface during fabrication.
20mm Backset
| Product Code | Bar Size (mm) | No. of Fixing Points | No. of Mushroom Cams | No. of Locking Claws |
| KSEF20020 | 200 | 2 | 0 | 2 |
| KSEF40020 | 400 | 4 | 2 | 2 |
| KSEF60020 | 600 | 4 | 2 | 2 |
| KSEF80020 | 800 | 6 | 2 | 2 |
| KSEF100020 | 1000 | 6 | 2 | 2 |
| KSEF120020 | 1200 | 8 | 4 | 2 |
22mm Backset
| Product Code | Bar Size (mm) | No. of Fixing Points | No. of Mushroom Cams | No. of Locking Claws |
| KSEF20022 | 200 | 2 | 0 | 2 |
| KSEF40022 | 400 | 4 | 2 | 2 |
| KSEF60022 | 600 | 4 | 2 | 2 |
| KSEF80022 | 800 | 6 | 2 | 2 |
| KSEF100022 | 1000 | 6 | 2 | 2 |
| KSEF120022 | 1200 | 8 | 4 | 2 |
200 - 1200mm
Gearbox - Zinc
Face and drive bar - Mild Steel
Striker - Zinc
(Full test details available on request.)
Minimum of 240 hours salt spray testing - BSEN 1670:2007
Zinc plate
When ordering please specify:
1. Espagnolette type 2. Sash size 3. Backset size 4. Cam size 5. Profile name and number
